PAK1000 50mm

PAK1000
Reverse 1-Slot / 50mm Opening

1 slot

Grille on Plenum: The All-In-One Solution

The PAK1000 Reverse 1 Slot 50mm is a complete Grille on Plenum system, designed for larger commercial spaces such as hotels and apartments. This system offers an efficient air distribution solution, including the grille, plenum box, and screws. Spigots and flexibles are available separately if required.

With an airflow capacity of approximately UP TO 1000m³/h, the grille features a single 50mm slot to deliver effective airflow. It is mounted securely on a plenum box, and the integrated design ensures easy installation with gypsum board, providing a level finish with the ceiling or wall.

Grille Dimensions: L: 900mm * H: 74mm
Proposed Opening for Gypsum Board: L: 904mm * H: 78mm
Plenum Box Dimensions: L: 900mm * H: 134mm * D: 150mm
Package Includes: Grille, plenum box, and screws (spigots and flexibles sold separately).

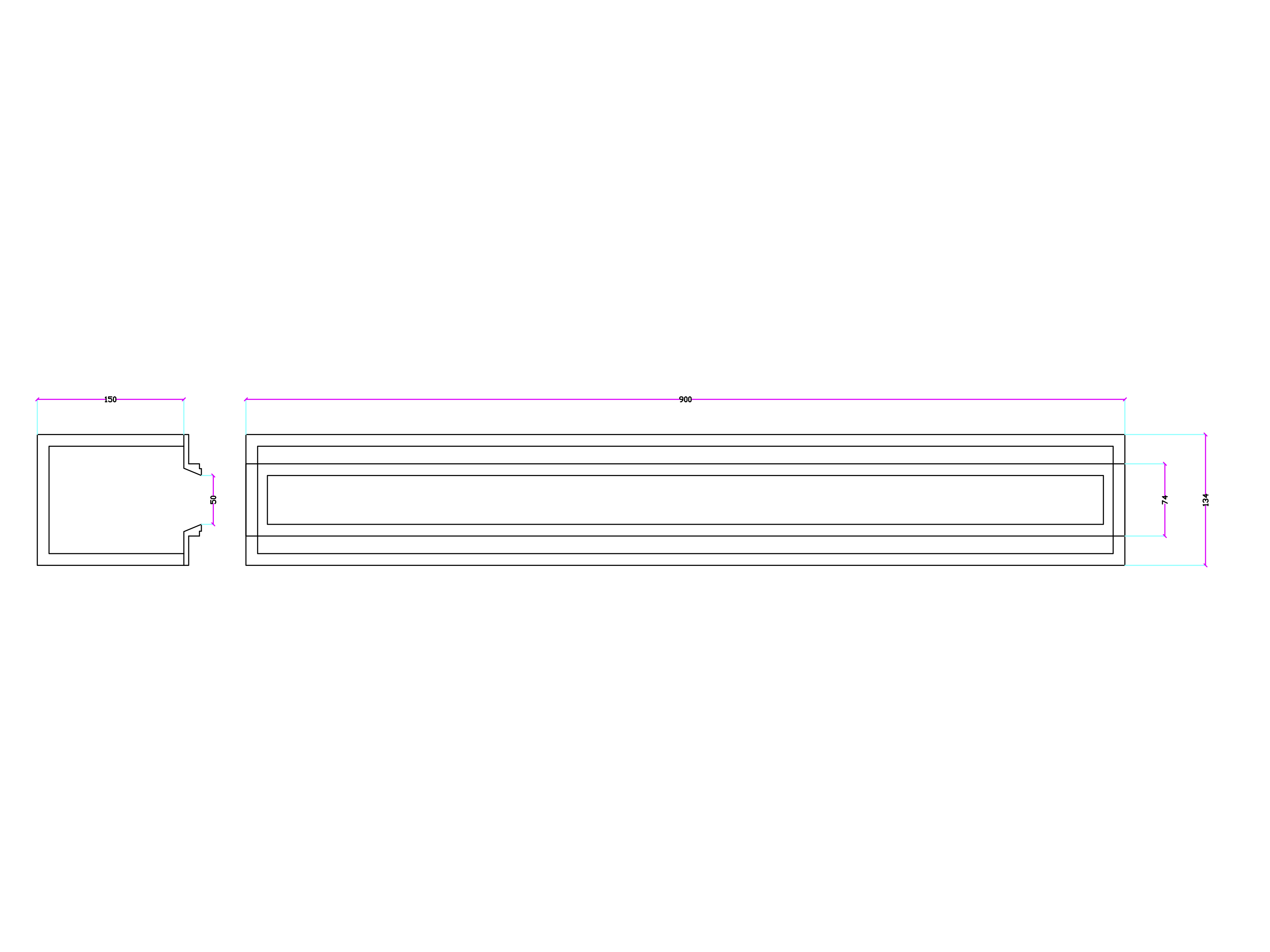

pak1000 1-slot grille

Grille Specifications

Noise dB(A) Velocity (m/s) Throw (meters) Pressure Drop ΔP(Pa)
35.5 5.8 7.5 18

PVC Specifications
