PAK1000 Reverse Linear C:12-5 / RF:30mm

PAK1000
Reverse Linear C:12-5 / RF:30mm​

linear

Grille on Plenum: The All-In-One Solution

The PAK1000 Reverse Linear C:8-5 is a complete Grille on Plenum system, designed for modern, large-scale commercial spaces such as hotels, apartments, and high-end residential environments. This system includes the grille, plenum box, and screws, with spigots and flexibles available separately if required.

With an airflow capacity of approximately UP TO 1000m³/h, this linear grille features 8mm perforations spaced 5mm apart, offering a sleek design with optimal airflow. The grille is securely mounted on a plenum box and integrates seamlessly with gypsum board for a smooth, level finish with the ceiling or wall.

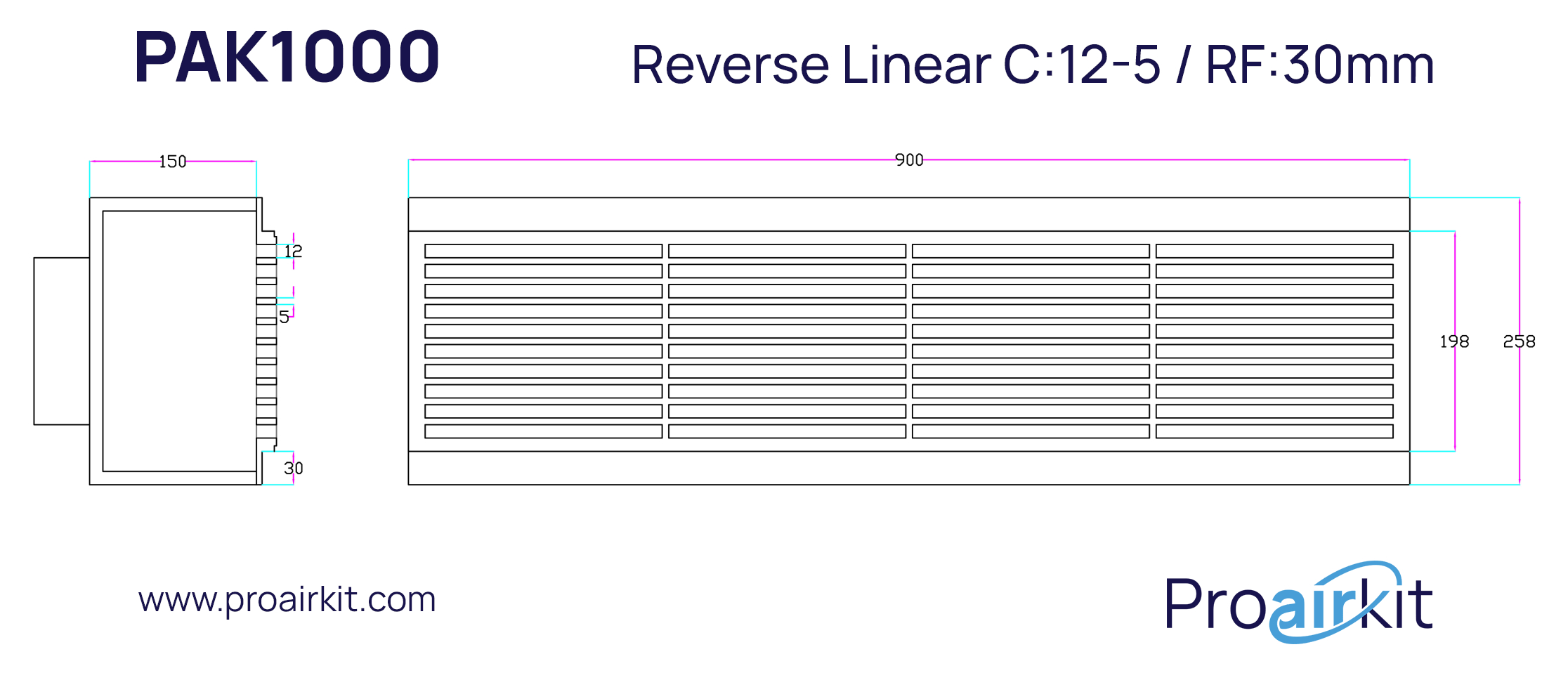

Grille Dimensions: L: 900mm * H: 198mm
Proposed Opening for Gypsum Board: L: 904mm * H: 203mm
Plenum Box Dimensions: L: 900mm * H: 258mm * D: 150mm

Package Includes: Grille, plenum box, and screws (spigots and flexibles sold separately).

REVERSE FRAME 30mm:
The space at the Top and Bottom behind the opening of the gypsum board that is needed for the frame to be attached on the Gypsum Board – No Metal Frames (UD /CD)

reverse linear pak1000

Grille Specifications

Noise dB(A)Velocity (m/s)Throw (meters)Pressure Drop ΔP(Pa)
312.64.88

PVC Specifications
