Reverse 1 Slot 40mm/ A:100

PAK700
Reverse 1 Slot 40mm/ A:100

1 slot

Grille on Plenum: The All-In-One Solution

The PAK700 Reverse 1 Slot 40mm is a complete Grille on Plenum system, designed for rooms in establishments such as hotels and apartments. This system offers a convenient air distribution solution, including the grille, plenum box, and screws. Spigots and flexibles are available separately if required.

With an airflow capacity of approximately UP TO 700m³/h, the grille features a single 40mm slot for effective airflow and is mounted securely on a plenum box. The integrated design ensures easy installation with gypsum board, providing a level finish with the ceiling or wall.

Grille Dimensions: L: 900mm * H: 64mm
Proposed Opening for Gypsum Board: L: 904mm * H: 68mm
Plenum Box Dimensions: L: 900mm * H: 124mm * D: 100mm


Package Includes: Grille, plenum box, and screws (spigots and flexibles sold separately).

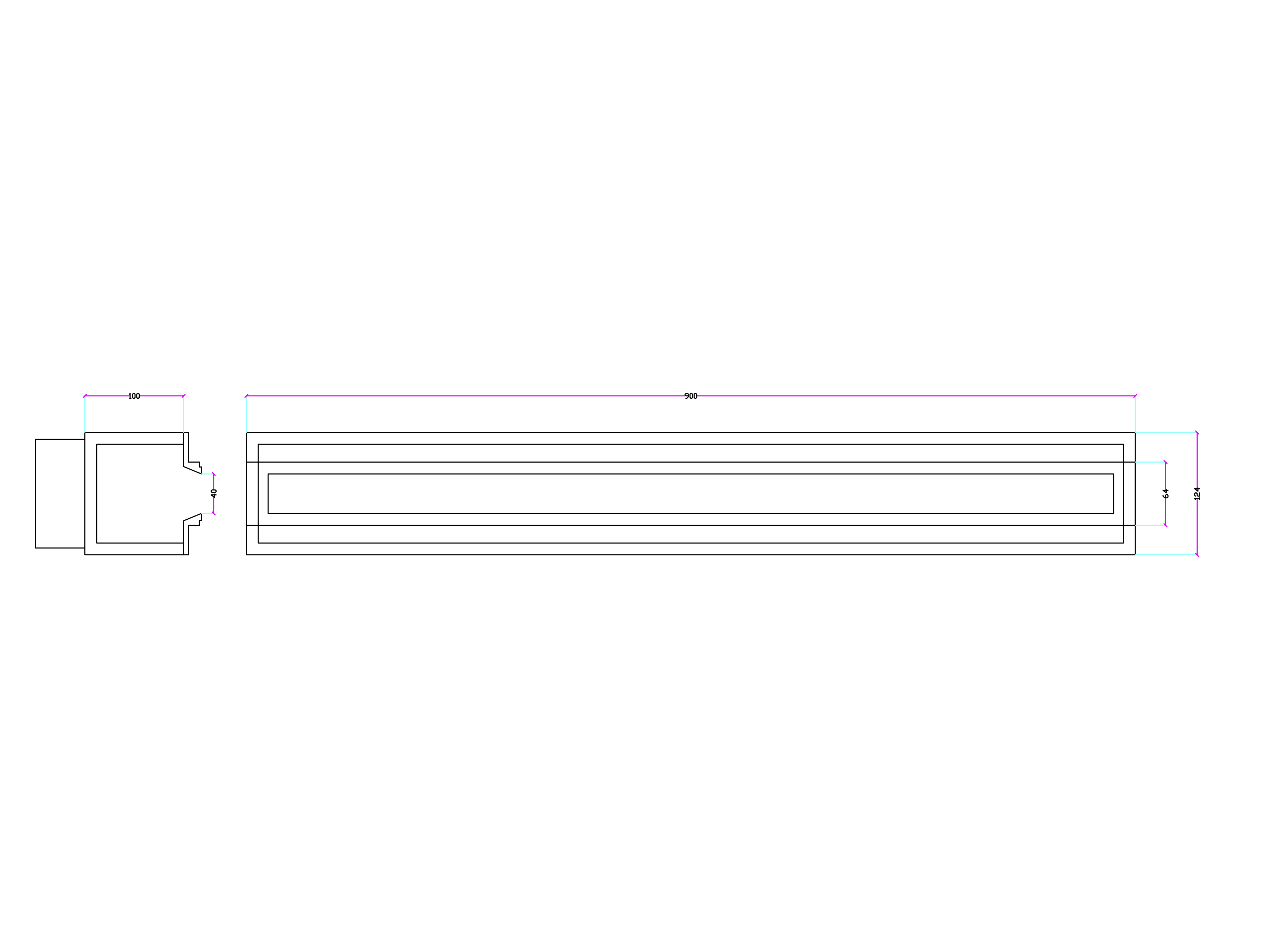

pak700 1-slot grille

Grille Specifications

Noise dB(A) Velocity (m/s) Throw (meters) Pressure Drop ΔP(Pa)
33 5.5 6 15

PVC Specifications
